SatGen Real-Time+ | HIL GNSS Simulation Software | LabSat

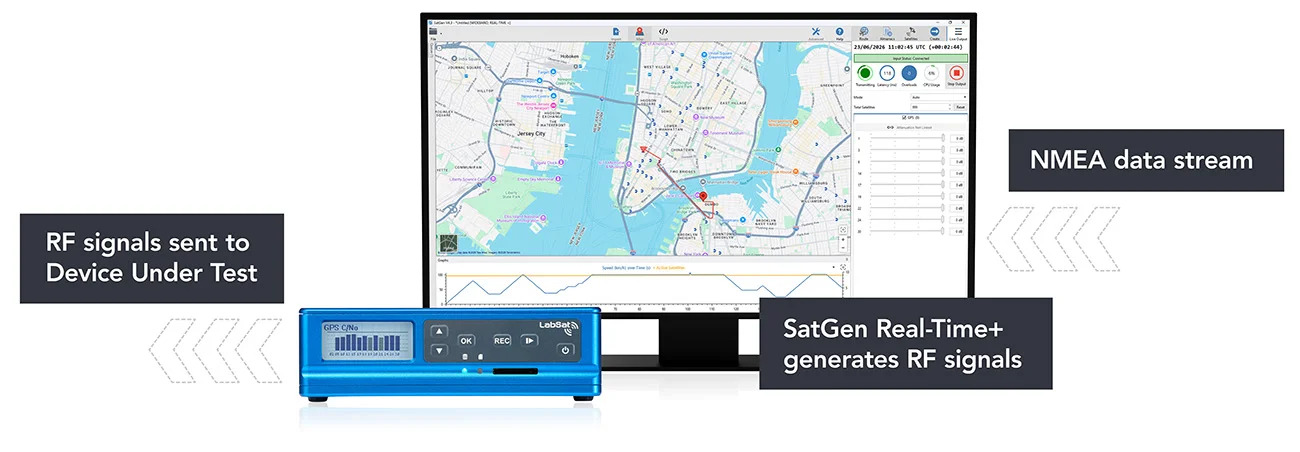

Your NMEA source. Live GNSS RF. In the lab

동작 순서 방법

1. Connect your NMEA source GGA, RMC 외부 NMEA 데이터를 SatGen RT+ SW가 설치된 PC 이더넷 또는 RS-232 입력	2. Configure your signals 사용자가 원하는 위성 주파수들을 선택 한다. GPS L1 to L5, Galileo E1 to E6, GLONASS, BeiDou, NavIC, and SBAS
3. Run the simulation NMEA 좌표 데이터를 해석하여 LabSat 4에서 실시간 위성 신호로 바로바로 출력	4. Adjust conditions live 시뮬레이션 중간에 위성들을 선택적으로 출력 파워 조절이 가능

HIL-ready

Designed for Hardware-in-the-Loop environments. Connects to your test rig, not around it

Multi-constellation

Full wideband signal support across GPS, Galileo, GLONASS, BeiDou, NavIC, and SBAS

Flexible connectivity

RS232 and Ethernet input. Four supported connection topologies to match your existing setu

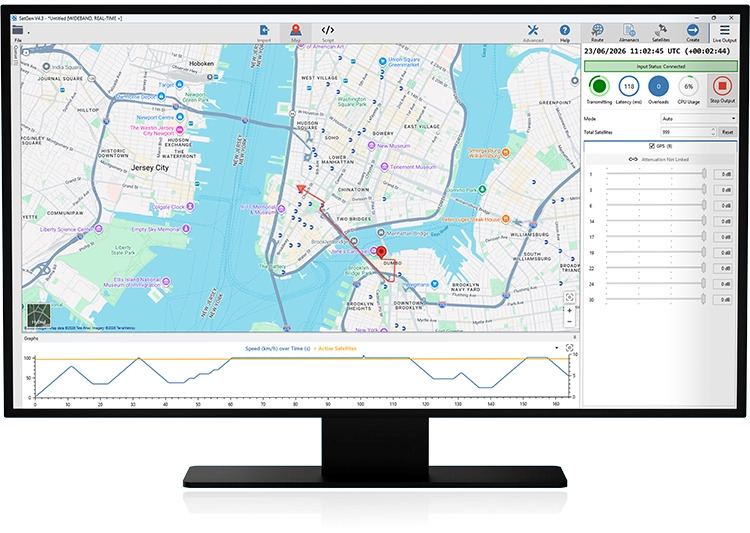

Live signal control

Adjust attenuation and satellite visibility per channel during a running simulation.

No new hardware

SatGen Real-Time+ is an add-on licence for SatGen Wideband. Works with LabSat 4, LabSat 4 Core, and LabSat 4 Lite.

Lab-based confidence

Controlled, repeatable test conditions that reflect real-world motion without field testing.

Compatible Hardware	LabSat 4, LabSat 4 Core, LabSat 4 Lite
Software Platform	SatGen Wideband (SatGen Real Time+ is an add-on licence)
Input Data Format	NMEA: GGA / RMC
Input Interfaces	Ethernet, RS232
Input Rate	5-100 Hz
Recommended CPU	AMD Ryzen 9 7950X3D or Intel Core i9-14900K
Minimum CPU	Intel Core i5-12600
RAM	16 GB minimum, 32 GB recommended
Operating System	Windows 10/11 64-bit
